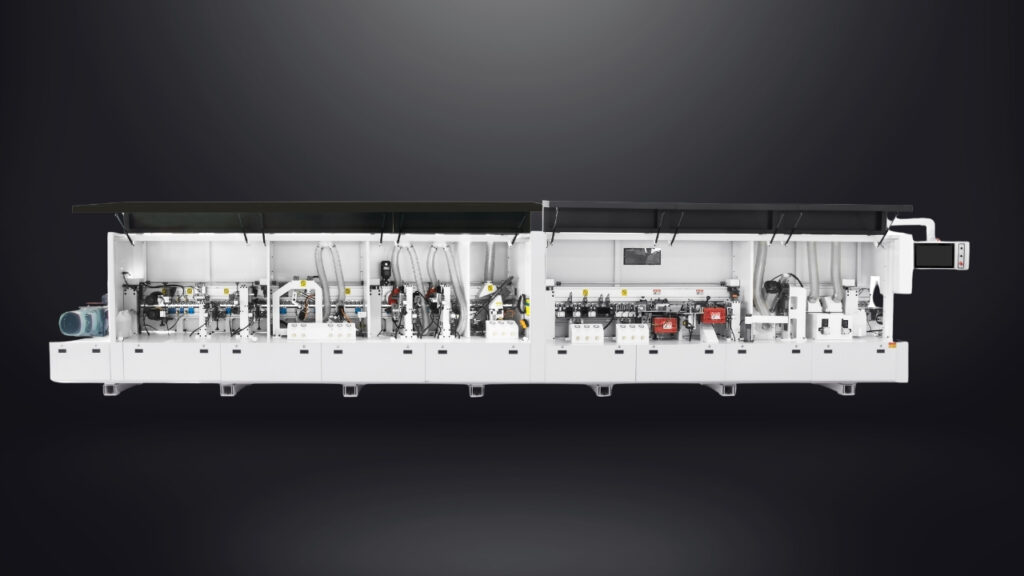

Automatic Bevelling & Straight Edge Band Machine EB-450
Product Categories
Sliding Panel Saw
Manual Edge Band
Automatic Edge Band
Multi Head Boring
NC Boring Center
Cold & Hot Press
Get A quote
Product Specification
| Model | EB-450 |
|---|---|
| Panel Thickness | Bevel 15-25 mm; Straight 10-60 mm |
| Tape Thickness | 0.4 -1.5 mm (Inclination); 0.4- 3 mm (Straight) |
| Feeding Speed | Bevel 13 m/min; Straight 15-23 m/min |
| Minimum Panel Length | 120 mm |
| Minimum Panel Width | 80 mm |
| Working Pressure | 6 Bar |
| Glue Tank Capacity | 2 kg /0.75 kw |
| Anti-Adhesive Spray Unit | Yes (By Pneumatic) |
| Power of Pre-Milling Unit | 2.2 kw x 2 |
| Beveled Motor | 5.5 kw |
| Heating Power | 3.5 kw |
| Power of End Trimming Unit | 0.37 kw x 2 |
| Edge Tape Grooving | 0.75 kw |
| Power of Top & Bottom Rough Trimming Unit | 0.75 kw x 2 with 18000 rpm |
| Power of Top & Bottom Fine Trimming Unit | 0.75 kw x 2 with 18000 rpm |
| Power of Corner Rounding Unit | 0.75 kw x 2 |
| Edge Scraping Unit | Numerical Analogue Readout |
| Spraying Unit | Yes (By Pneumatic) |
| Buffing Unit with Cloth Disc | 0.37 kw x 2 & Dia. 155 mm |
| Conveyor Motor | 3.7 kw |
| Beam Lifting | 0.37 kw |
| Display | Yes |
| Total Power | 29.72 Kw |
| Overall Dimensions | 9980 X 1050 X1000 mm |
| Weight of the machine | 3500 Kg |
| Voltage | 415V, 50 Hz/ 3-Phase |
