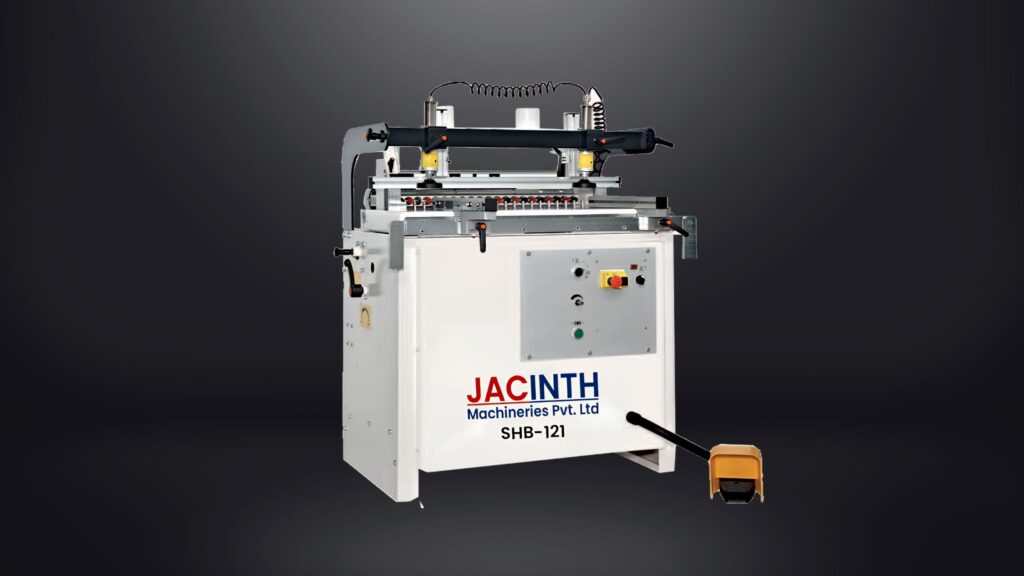

Single Head Boring Machine SHB – 121
Product Categories
Sliding Panel Saw
Manual Edge Band
Automatic Edge Band
Multi Head Boring
NC Boring Center
Cold & Hot Press
Brochures
Download our brochure to explore our products, services, and business solutions.
Get A quote
Product Specification
| Model | SHB - 121 |
|---|---|
| Name | Single Head Boring Machine |
| Max. Drilling Diameter | 35 mm (Single Bit), 13 mm (Multi Bits) |
| Max. Drilling Depth | 60 mm |
| Total Number of Spindles | 21 |
| Installation Pitch of Drill Bit | 10 mm |
| Spindle Speed | 2840 rpm |
| Total Motor Power | 1.5 kw |
| Weight | 300 Kg |
| Overall Dimensions | 1000 x 1000 x 1350 mm |
| Voltage | 415 V, 50 Hz/3-Phase |
| Category | Multi Head Boring |
