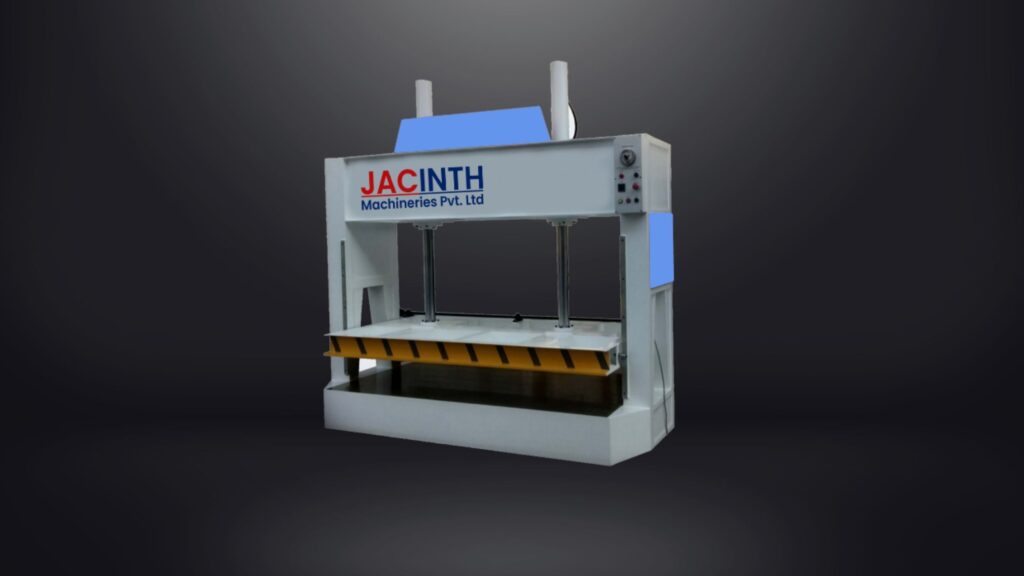

Cold Press

Product Categories

Brochures

Download our brochure to explore our products, services, and business solutions.

Get A quote

Product Specification

Two models of Cold Presss are available:
Model CP-50T CP-100T
Name Cold Press- 50 Ton Cold Press- 100 Ton
Machine Structure Welded High Tensile Steel Welded High Tensile Steel
Dimension 1300 x 2500 mm 1300 x 2500 mm
Maximum Pressure 50 Ton 100 Ton
Maximum Opening 1000 mm 1000 mm
No. of Hydraulic Cylinders 2 4
Size of Hydraulic Cylinders 90 x 125 mm 90 x 125 mm
Installation Power 5 Hp 5 Hp
Weight 2400 kg 2900 kg
Working Voltage 415V, 50 Hz / 3-Phase 415V, 50 Hz / 3-Phase
