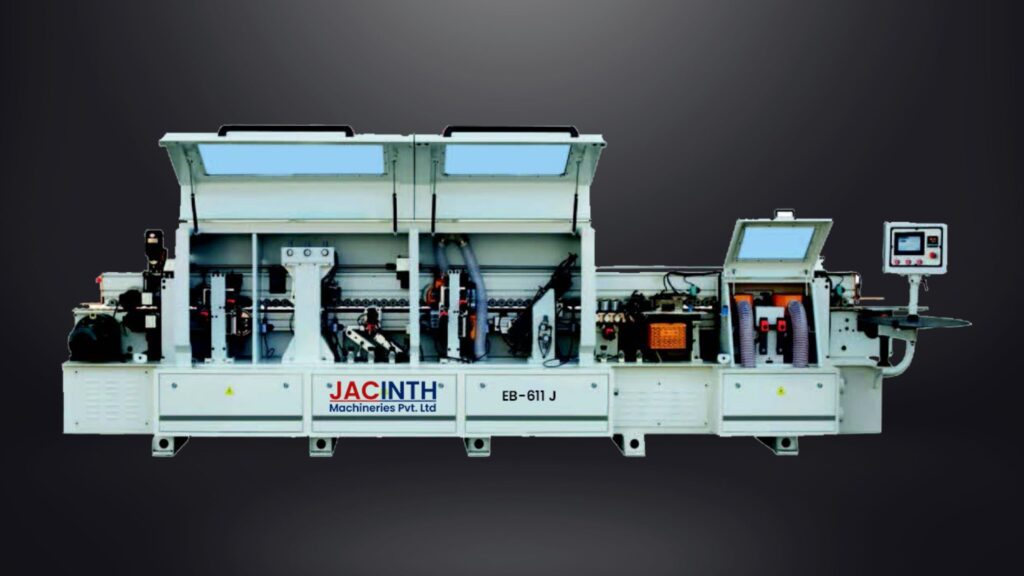

Edge Band Machine EB-611 J

Product Categories

Brochures

Download our brochure to explore our products, services, and business solutions.

Get A quote

Product Specification

Model EB-611 J
Name Edge Band Machine
Panel Thickness 10-60 mm
Tape Thickness 0.4-3 mm
Feeding Speed 15/20/23 m/min.
Minimum Panel Length 120 mm
Minimum Panel Width 60 mm
Working Pressure 6 Bar
Glue Tank Capacity 2 kg / 0.75 kw
Anti-Adhesive Spray Unit Yes (By Pneumatic)
Heating Power 2.5 kw
Power of Pre-Milling Unit 2.2 kw x 2
Pre-Milling Cutter Dimensions Standard 35 mm (Optional 45 mm)
Power of End Trimming Unit 0.37 kw x 2
Power of Top & Bottom Trimming Unit 1.1 kw x 2 with 18000 rpm
Power of Corner Rounding Unit 0.37 kw x 2
Edge Scraping Unit Numerical analogue Readout
Spraying Unit Yes (By Pneumatic)
Buffing Unit with Cloth Disc 0.37 kw x 2 & Dia. 155 mm
Conveyor Motor 4 kw
Beam Lifting Motor 0.37 kw
Display Yes
Total Power 16.5 kw
Overall Dimensions 6220 x 970 x 1800 mm
Weight of the machine 2100 Kg
Category Automatic Edge Band
