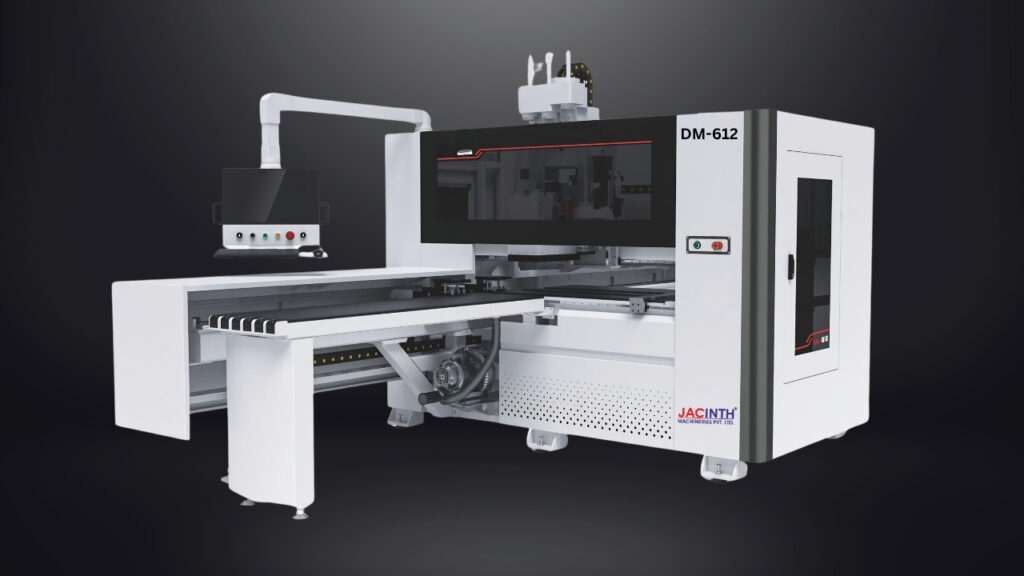

CNC Drilling Machine DM-612
Product Categories
Sliding Panel Saw
Manual Edge Band
Automatic Edge Band
Multi Head Boring
NC Boring Center
Cold & Hot Press
Brochures
Download our brochure to explore our products, services, and business solutions.
Get A quote
Product Specification
| Model | DM 612 |
|---|---|
| Processing Sides | Six Side Drilling with Double Boring Head |
| Spindle Power (Top and Bottom) | 3.5 kw x 2 |
| X*Y*Z Effective Stroke | 1300*2400*200 mm |
| Main Spindle Speed | 0-18000 rpm |
| Working Length | 150-2800 mm |
| Working Width | 40-1200 mm |
| Working Thickness | 10-55 mm |
| Maximum Speed of Gripper | 138 m/min |
| Y Axis Max. Speed | 90 m/min |
| Z Axis Max. Speed | 30 m/min |
| Machining Accuracy | ±0.1 mm |
| Air Pressure | ≥8pa/m² |
| Voltage | 380 V 50/60 HZ |
| Number of Grippers | 2pcs |
| Control System | Taiwan Baoyuan |
| Driving System | Taiwan Baoyuan |
| Upper Horizontal Drill | X-axis 2*2 pcs, Y-axis 2*2pcs |
| Upper Vertical Drill | 12pcs |
| Down Vertical | 6 pcs |
| Transmission Structure | X1/X2/Y1/Y2/U/V Oblique rack ; Z Screw rod |
| Dust Suction | Up:150mm Down:200 mm |
| Dimension | 18 kw |
| Rotation Speed | 2400 rpm |
| Weight | About 4000kg |
