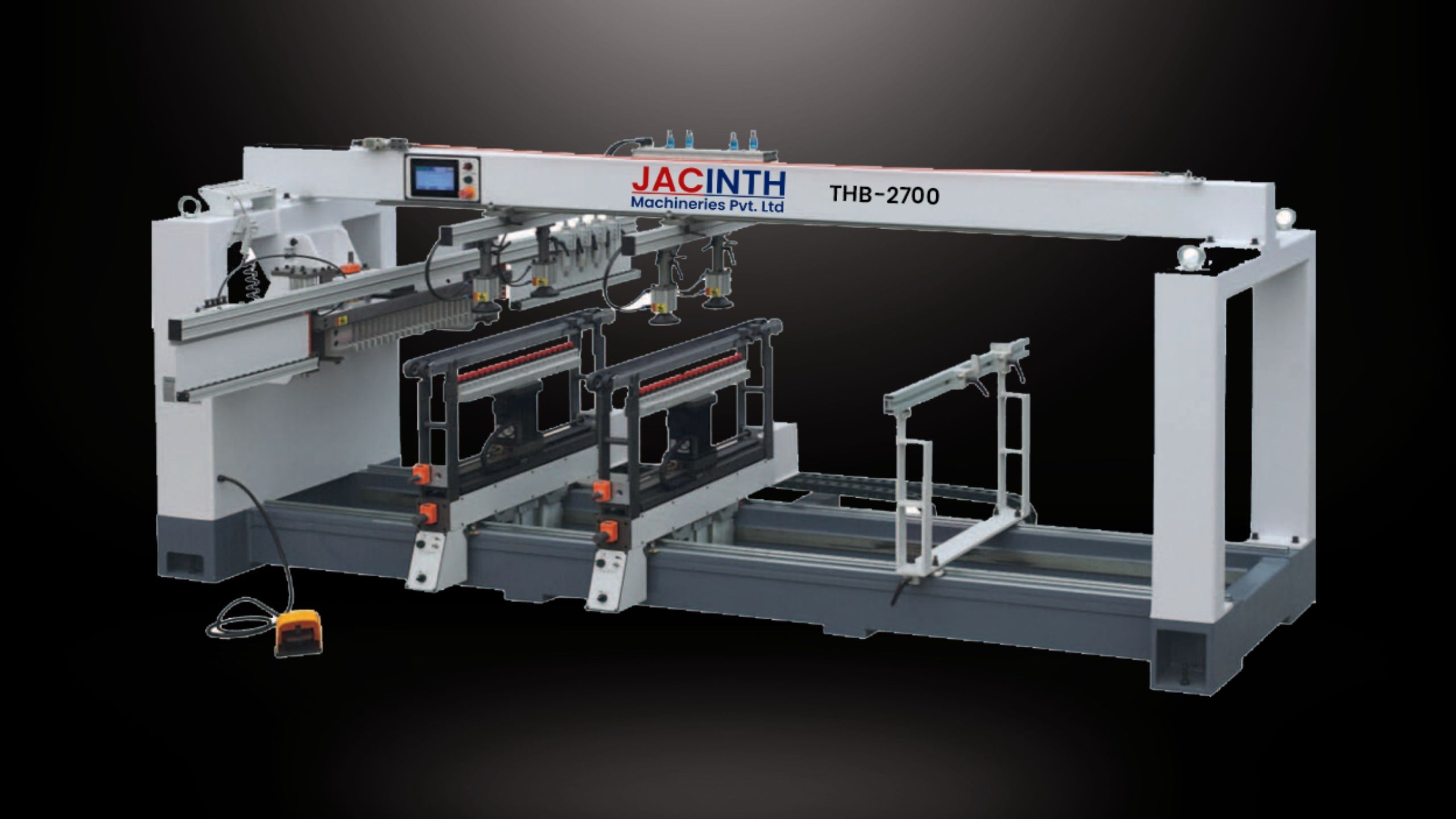

Three Head Boring Machine THB – 2700
Product Categories
Sliding Panel Saw
Manual Edge Band
Automatic Edge Band
Multi Head Boring
NC Boring Center
Cold & Hot Press
Brochures
Download our brochure to explore our products, services, and business solutions.
Get A quote
Product Specification
| Model | THB – 2700 |
| Name | Three Head Boring Machine |
| Maximum Processing Width (X-axis) | 2700 mm |
| Horizontal Measuring Fence | 3000 mm (3 meter) |
| Maximum Distance Between Horizontal Holes | 640 mm |
| Minimum Distance of Vertical Drill | 128 mm |
| Maximum Thickness of Workpiece | 78 mm |
| Horizontal Maximum Drilling Depth | 40 mm |
| Vertical Maximum Drilling Depth | 70 mm |
| Shaft Rotation Speed | 2800 rpm |
| Vertical Drilling Power | 1.5 kw x 2 |
| Horizontal Drill | 1.5 kw |
| Touch DRO | Yes |
| Working Pressure | 0.6 - 0.8 Mpa |
| Total Power | 4.5 kw |
| Packing Size | 3550 x 1280 x 1800 mm |
| Weight | 1300 Kg |
| Voltage | 415 V, 50 Hz / 3-Phase |
| Category | Multi Head Boring |
